The FLFA-1000 shown . . .
Hot Air Wood Furnace
This photo is to show how the preferred black front (so that it does not show smoke stains) with your choice of 17 total colors that you can get at NO CHARGE!
Our simplest furnace and the easiest to install; No underground Pex pipe, No heat exchangers,
No proprietary parts, No water, No rust, No chemicals or water test needed ever.
Warmer than a heat pump by at least 60 F!
Saves you hundreds in fuel or electric costs every month!
Heat one building as warm as you want using our largest 2010 CFM blower. The average household furnace fan is 1500 CFM so we are 33% larger for more air volume and heat. Our closest competitor has the same 1500 CFM fan, only 10" ductwork. Ours is 20% larger (12") for more air flow.
Our hot air furnaces weigh about double as the competition because their weight is only 780-950 lb, due to the 1/3 thinner firebox (3/16")!
Kiln heater - firewood drier
You can virtually do any smaller building 4375 sq. ft. or less, with this model and it will do it well. This firebox is 28" deep and holds a whopping 16 cu. ft. of wood. You can put 2' foot logs in it and they do not have to be split! In fact, whole logs burn better and longer due to our 75 CFM forced air induction fan in the back, feeding oxygen in from the bottom, up through the grates just like a blacksmith's forge.
HyroTherm FLFA-1000
FORCED AIR WOOD Furnace
OUTDOOR WOOD FURNACE
AIRSTOVE
This FLFA-1000 or TW1000 is Rated to Heat up to 4375 sq. ft., well insulated, burning a good hardwood like oak on PA or South
With our largest 2010 CFM 3-speed fan
The FIREBOX is 28" deep x 31.75" wide x 31.75" high which is 16 cubic feet
It is rated at 91,000 BTU
burning a good hardwood like oak;
The firebox holds .0125 cord or about 3 million BTU of oak
$6697 and heating up up to 4375 sq. ft. and has a BIGGER 3-speed 2010 CFM blower,
12" ducts, pull-out ash tray, more wood capacity which means less loading!
Thermowind Model FLFA-1000 aka TW-1000
NOT permitted in Washington state.
This is NOT a boiler and most laws speak about Outdoor Wood Boilers. So that MIGHT be your loophole.
Please check with YOUR state, county and town before buying because some states, counties and towns have their own state EPA or other laws!
Tell them that you want to install an outdoor hot air, waterless wood furnace.
If that is a no-go, ask about a COAL furnace, which is virtually the same and will burn wood even better because it has the 75 CFM forced-air induction blower feeding oxygen from the back, up through the grates, just like a Blacksmith's forge; giving you a super hot fire that will burn anything!
SEE THIS PAGE
That means NO RUST EVER,
NO CHEMICALS,
NO WATER TESTS!

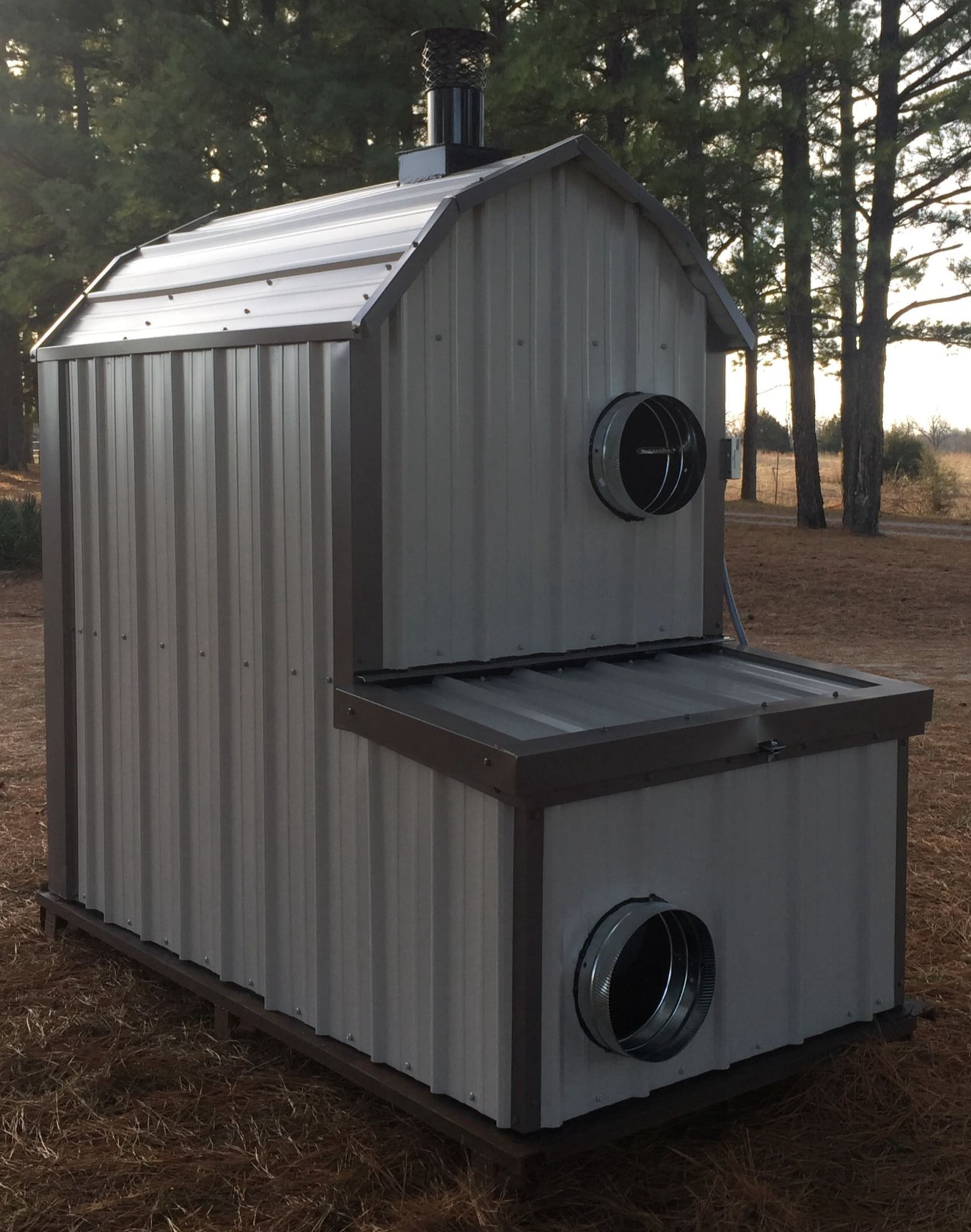

This furnace has two fans; a 75 CFM forced-air induction blower to feed oxygen in from from the bottom though the grate (which most do not have), One 12" supply duct and one return duct, for better air circulation.
See Photo
Hyprotherm has an on-site warranty, unlike 85% of the manufacturers. Wherever you live, be it the US, Canada, UK or Europe, we will send someone to your location to repair your furnace if anything major* happens,
SIMPLE TOO! The only things needed are a thermostat wire, a 110V power wire and inexpensive 12" round ductwork.
This photo is to show how the preferred black front (so that it does not show smoke stains) with your choice of 17 total colors that you can get at NO CHARGE!
This photo shows how many people run their ductwork through a basement window, which happens to be the exact size in many instances and makes installation a breeze!
This customer did a great job, connecting his 12" insulated ductwork to the Hyprotherm Hot Air wood furnace - with a substantial shelter above it, with matching steel!
We recommend a 4" thick concrete pad to carry the weight of these furnaces because this model weighs 1400 pounds.
I made my pad 36" (3 feet) in the front, instead of two, for ample room to stand while loading.
You will need a substantial pad so that the boiler does not sink into the ground.
You can also use solid 4" concrete blocks or even pavers. Many people use railroad ties for support. The choice is yours.
Models FLFA-1000,
FLFA-2000 and FLFA-3000 forced hot air wood
or coal furnaces
2: 430-ton Press Brake
We are the only manufacturer that uses a press brake to form a firebox and air jacket; both from 1 piece of metal.
Most everyone else uses 6 flat slabs of steel, with no inherent strength and that requires 12 welds because welds are the weak spots.
This new firebox and air jacket are formed using a 430-ton Press Brake,
1 inch solid steel Grates
3: One inch thick sold solid steel coal grates do very well.
Cast Iron Shaker grates are available as an option, mostly for those folks burning a lot of coal, where the coal is inclined to have clinkers.
Our smallest models have one grate, the next two sizes up have two grates and our largest models typically have three grates.
4: 75 CFM forced air stoker blower with simple solenoid activated damper
5: 75 CFM forced-air induction blower, forcing oxygen up through the grate (s), just like a blacksmith's forge!
6: Pull-out Ash Tray
Most manufacturers make you open up the firebox door to clean out the ashes with a shovel. You will quickly find out that you are not going to get anywhere near the firebox because it will be 800 F or more!
They want you to open the firebox door and you will need to leave it open to let the heat out and I call that wasting heat. You will need to kill the fire to be able to shovel out the ashes and then you have to start a fire again, in the dead of winter.
With our furnaces you do it the easy way. Even with a fire raging, you can pull out the ash tray, dump the ashes into a fire proof container and slide the tray back in without missing a lick. Two handles on the ash tray make it easy. Every ash tray is the same length as the firebox.
FYI: If you are heating HALF as many square feet as our rating, you can load it just ONCE a DAY!
REMEMBER! There is no such thing as a furnace that is too big because it is NOT like an air conditioner,
where if you get one too big, it becomes inefficient.
This is like getting a bigger propane or oil tank! You can load it with more wood (full rounds - no splitting!) and it will burn longer and therefore you will load it less often.
No one has ever complained and said that I sold them one too big.
In contrast, many people have said,
"I wished that I listened to you!"
Wadena / Hopsco Forced Air Furnace vs
Hyprotherm Forced Air Furnace
|
Hopsco who purchased Wadena |
Hyprotherm Manufacturing LLC |
|
Firebox Thickness: only 3/16" only 24/28" deep |
Firebox Thickness: 33.3% thicker at 1/4" 55" deep! |
| ODF1500: 780 lb ODF2000: 950 lb | TW1000:
1720 lb/2069
crated TW2000: 2220 lb/2477 crated TW3000: 2340 lb/2590 crated TW4000: 3380 lb/3630 crated |
| Blower: Just 1500 CFM |
34.6% larger blower: 2020 CFM |
|
Heating area: ODF1500: 2,800 sq. ft. |
TW4000: 10,700 sq. ft. This is loading it twice a day OR ONCE A DAY heating half of that square footage. |
| Duct
Size 10" |
20% bigger Duct Size; 12" I.D. |
| Flue must be purchased separately | 87.5" Flue included WITH a chimney cap² |
| Firebrick must be purchased! | No Firebrick needed due to thicker firebox! |
| I
have never heard of this furnace until I saw this post so
I checked out the website. The first thing I noticed was
the tiny air ducts, then I saw only 500 cfm fan?! Those
two items would make me walk away and not look back. See review |
COMPARE to our 20% bigger ducts AND our 34.6% larger blower! |
²
OUR Flue drops down into the firebox 14 inches, trapping in the heat and the smoke but more importantly, the gases, due to this huge secondary burn chamber, which will be burnt off; valuable heat energy that would have been otherwise lost!
PLUS SolarGuard Reflective Insulation on top!
SolarGuard Reflective Insulation greatly increases comfort by reducing radiant heat gain. The barriers consist of a highly reflective material that reflects radiant heat rather than absorbing it. SolarGuard is effective used alone or in conjunction with fiberglass batts for optimal thermal performance.
Blocks radiant energy, heat conduction and convection
Bright Finished Appearance
Hot Melt Technology
Reflective
Vapor Retarder
