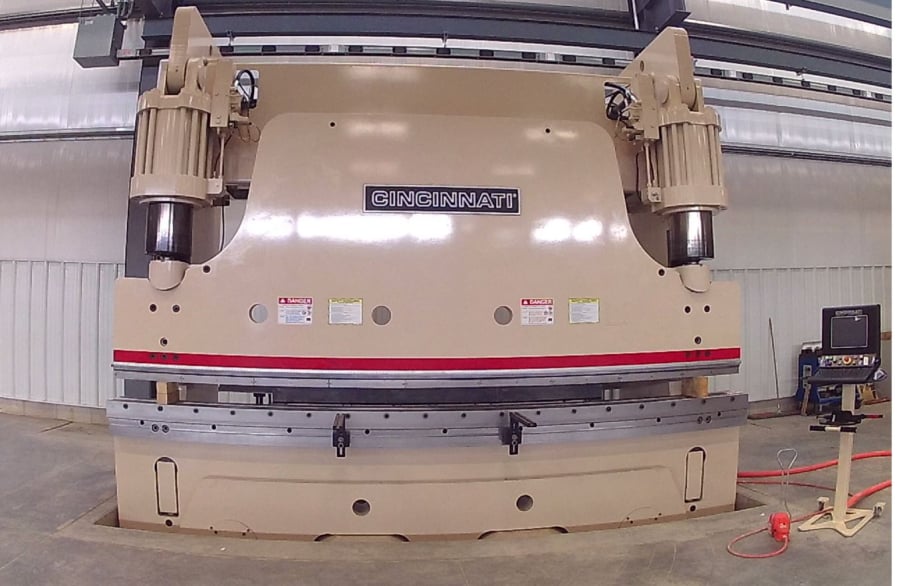

430-ton Press Brake
A 430-ton press brake allows us to use ONE PIECE of steel to form it into a firebox; only needing a back and front plate and to be welded to the bottom. Giving you FOUR welds instead of the typical 8 (with other manufacturers) and that is important because leaks usually start at welds.
2: Pull-out Ash Tray
Most manufacturers make you open up the firebox door to clean out the ashes with a shovel. You will quickly find out that you are not going to get anywhere near the firebox because it will be 800 F or more!
They want you to open the firebox door and you will need to leave it open to let the heat out and I call that wasting heat. You will need to kill the fire to be able to shovel out the ashes and then you have to start a fire again, in the dead of winter.
With our furnaces you do it the easy way. Even with a fire raging, you can pull out the ash tray, dump the ashes into a fire proof container and slide the tray back in without missing a lick. Two handles on the ash tray make it easy. Every ash tray is the same length as the firebox.
3: A built-in copper hot water coil, that sits in the big tank of water to heat your domestic hot water; saving you $35-$65 a month in energy costs plus $300 in installation costs of parts that are needed with other manufacturers' boilers.
4: 75 CFM forced-air induction blower, forcing oxygen up through the grate (s), just like a blacksmith's forge!
<This is not on ours!
6: It is the best boiler because we use ALL Off-the-Shelf PARTS; nothing proprietary that you have to get from us.
7: It is the best boiler because it has No electronics; NO circuit boards, NO computerized parts (like on the Wood Master and Central Boiler and many others)!
8: They all come pre-wired with a reliable RANCO aquastat as shown.
All wired up, protected behind full-sized rear door.
The simplest furnace to install
Saves you hundreds in fuel or electric costs every month!
Hyprotherm offers the best residential boilers for heating homes!
Without a doubt, Hyprotherm is the best outdoor wood boiler on the planet! Not only that, Hyprotherm has a wood boiler that is aesthetically pleasing with your choice of 21 different wood boiler colors, at absolutely no charge. Remember, while it is called a wood boiler it is actually a log fired water heater! The water never actually boils.
Our wood boilers burn logs, and all types of wood; softwood and hardwood, oak to pine, wet or dry, wood chips and even sawdust or coal!
Most Hydronic wood furnaces don't even have a set of grates in them let alone a fan to blow oxygen in from the bottom, up through the grates, just like a blacksmith's forge. Using our standard 75 CFM blower, with a solenoid activated draft door, you save the most wood and you get the hottest fire this way, and this wood boiler will burn anything; wet wood, dry wood, railroad ties and virtually anything flammable; as long as there is no paint or glue involved. Remember even driftwood is poisonous when burned.
Having the blower blow oxygen in from the bottom of the furnace, is the only way coal will burn. That is why most wood furnaces will not burn coal because they usually have a fan on the front door and that simply won't work! Others don't have a fan but have a damper on a manual draft which doesn't do anywhere as well as force feeding oxygen into the bottom of the fire. Many of these boilers have unburnt pieces of wood left over simply because they are not getting enough oxygen!
Hyprotherm's new firebox is formed using a 430-ton Brake Press, giving you one piece of metal for three sides; that means less welds which means less potential for leaks because leaks most always start at welds. There are almost as few welds as on a cylinder; Only 4 welds vs. 12 welds on a typical firebox; where they weld 6 flat slabs of steel together to form a box, with no inherent strength at all!
Not only is the Hyprotherm firebox thickness is 50% thicker than most others (ours are 3/8" and 1/2"); the water jacket bottom is THE SAME THICKNESS as the firebox because it is the most vulnerable part); 3/8" standard and the 1/2" THICK firebox option gives you a HALF INCH THICK water jacket bottom as well!
NO ONE ELSE DOES THAT - ANYWHERE!!
Not only do we have grates in the furnace, you have the capability to easily clean out the ashes with our pull out ash tray. Most other manufacturers tell you to open the firebox door and push the burning wood aside (yea sure!). What they don't tell you is that the firebox is going to be 800F - 2000F and you are not going to get anywhere near it until you open the firebox door and let the hot air escape - but now you have just fueled the fire with oxygen and you will have a roaring fire again.
Hyprotherm uses ALL Off-the-Shelf PARTS; you don't have to get parts from us.
There are No electronics; NO circuit boards, NO computerized parts, (like on the Wood Master and Central Boiler and many others)! NO Smart Phone Hookup (You don't need complex things!)
We install flat cast iron grates on all but the wood models. Cast-iron SHAKER GRATES are available on any model, even wood boilers.
We give you one pump installed WITH flanges; while many others don't even give you any pump. Our wood boiler has an extra set of ports for another pump to heat another building, shop, garage, pool, hot tub, driveway, walkway, greenhouse, etc.
Your Hyprotherm Boiler will come with a BUILT-IN HEAT EXCHANGER to heat your domestic hot water; you do not need to purchase an external heat exchanger to mount on your hot water heater, such as a side-arm or plate exchanger because it is included with your purchase of this boiler and works astoundingly well! This saves you about $300.00 plus you don't need an anti-scald valve!
My electric bill was reduced by over 30% the very first month I hooked up the HyproTherm wood boiler to my domestic hot water heater. (Ben J)
TOP LOADING
Outdoor Wood Boiler
