Hyprotherm Furnace PRO FLRH-85

Learn



PRO FLRH-85 Wood and Coal Boiler

Up to 2,300 sq. ft. burning a good hardwood like Oak, well-insulated building in a cold climate like PA

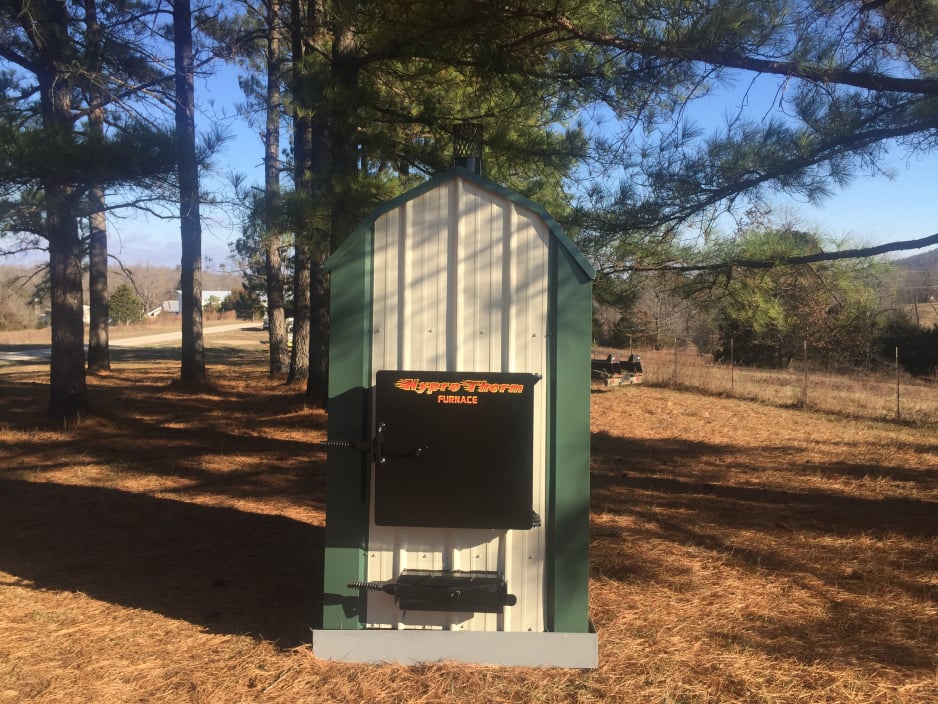

FLRH-85 Outdoor Boiler

FLRH-85 PRO Model


$7397 (the lowest full featured priced boiler in the industry)


(Front Loading Residential Heater)
HyproTherm Wood and Coal Boiler
AKA Hyprotherm 85

Hyprotherm FLRH-85
ALL of the options of all the front loading boilers - except for ECONO model

Rear with Full-Sized Rear Door Shown
FLRH-85 SPECIFICATIONS:

Water Capacity; 85 gallon
Firebox Thickness: 3/8" standard (50% thicker than most others)
with a 1/2" option for $599, where you also get a 1/2" water jacket bottom!
Water Jacket Thickness Bottom; 3/8” (No one else in the world does this!)
Water Jacket Thickness Sides and Top; 3/16” up-gradable to 1/4" for $395 (1/3 Thicker)
Firebox Capacity; 15 cubic feet
Firebox Dimensions; 3/8” thick @ 27"L x 29”W x 34”H
Overall Dimensions: 63.5”L x 46”W x 87”H
Shipping Weight: 1,966 lbs
Fuel Door; 26.5” x 26.5” with a 2' x 2' opening
Grate System; Flat Cast (Optional Shaker Grate Upgrade if Burning Coal)
Ash Clean-out: Removable Ash Pan
BTUs; 95,243 @ 180 degree
Heatable Area; 2,300 sq ft approx

The standard insulation on our furnaces is unbeatable and a non-degrading K-factor insulation.



All Hyprotherm Models (except for our lowest priced boiler; the Econo-85) include one pump installed with flanges. This boiler also includes a second set of ports, a built-in heat exchanger to heat your domestic hot water, a pull out ash tray, a reliable digital Ranco aquastat plus it is pre-wired and includes a water level gauge and an analog thermometer as well. They also have a super-thick, heavy-duty 5/8” stove poker, a chimney cap and dual motion light.

This model includes a standard 3/8 inch thick firebox AND the water jacket bottom is also 3/8 inch thick, the most vulnerable part of the furnace! The super thick 1/2 inch option gives you the 1/2 inch water jacket bottom as well.

In the U.S., our furnaces are for Commercial applications only.

Our traditional outdoor furnaces generate economical,
natural and safe heat.

They are compatible with most existing and new heat systems,
including hot water, forced air, hydronic heat, radiant floors and baseboard heat and more.

They are built to heat buildings, garages, workshops,
commercial and other spaces, plus domestic hot water systems,
pools and hot tubs.

20-year ON-SITE WARRANTY

1.

20-year ON-SITE WARRANTY!

- VERY IMPORTANT, with Hyprotherm you won't have to pay shipping back to the factory to get it repaired! We come to you for any major repair. FYI, other manufacturers will charge you to ship it back to your home after it is repaired, as well! (10-years on water jacket)
430-ton Press Brake

2: 430-ton Press Brake

We are the only manufacturer that uses a press brake to form a firebox and air jacket; both from 1 piece of metal.

Most everyone else uses 6 flat slabs of steel, with no inherent strength and that requires 12 welds because welds are the weak spots.

This new firebox and air jacket are formed using a 430-ton Press Brake, meaning less welds which means less potential for air leaks because leaks often start at welds; Almost as few welds as on a cylinder; Only 4 welds vs. 12 welds on a typical firebox. Three times less!

3: Not only is the firebox thicker; the water jacket bottom is THE SAME THICKNESS as the firebox because it is the most vulnerable part); 3/8" standard and the 1/2" THICK firebox option gives you a HALF INCH THICK water jacket bottom as well!
NO ONE ELSE DOES THAT - ANYWHERE!!  The cost for this is more (CALL ME FOR PRICE, however you may want to consider that upgrading the thickness of the water jacket may be a better option for a LOT LESS MONEY, where we make your water jacket 1/3 thicker, upgrading it to 1/4" thick, which is what I did on my personal boiler.

Proprietary Electronics and Circuit Boards

4: It is the best boiler because it has ALL Off-the-Shelf PARTS; nothing proprietary that you have to get from us.

5: It is the best boiler because it has No electronics; NO circuit boards, NO computerized parts (like on the Wood Master and Central Boiler and many others)!

Smartphone Monitoring

6: Do you really need a Smartphone or Laptop to monitor your outdoor boiler?

I say that you should not have one if you cannot go outside and open the rear door and look at the thermometer and glance at the water gauge to see what is going on!

It is just something else to go wrong with a lot of extra expense that seems to be never covered under warranty.  They always say that a power surge took out the circuit board and you get stuck with a $300.00 bill and the technicians cost to install it.

Not so with HyproTherm.  Every part on our boiler is available almost anywhere and everywhere; on eBay, at Grainger, your local plumbing supply; even in Canada!

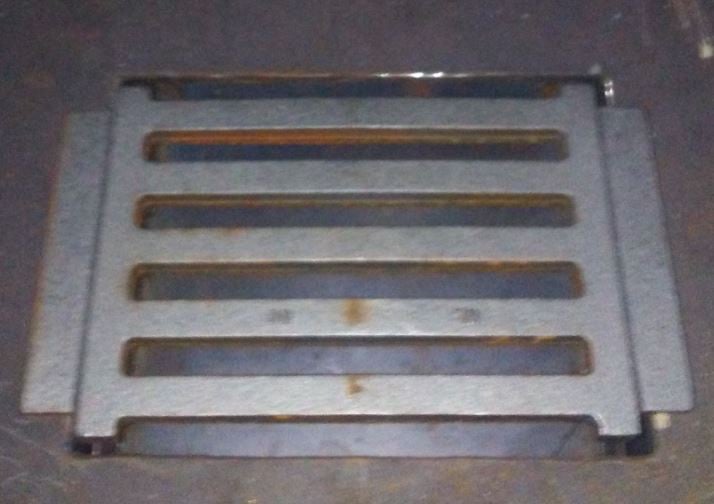

Cast Iron Grates

Cast Iron Grates

7: Cast iron grates are a stronger option, resistant to bowing and deformation like you may get with steel grates.  We purchase these from a foundry that labels them as coal grates, and they do well.  Shaker grates, also cast iron are available as an option, mostly for those folks burning a lot of coal, where the coal is inclined to have clinkers.

Our smallest models have one grate, the next two sizes up have two grates and our largest models typically have three grates.

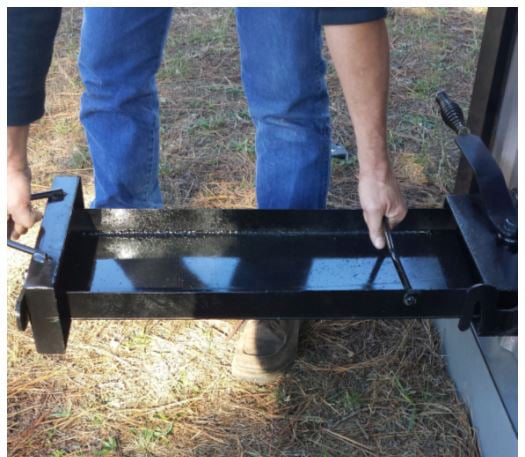

Pull-out Ash Tray

6: Pull-out Ash Tray

Most manufacturers make you open up the firebox door to clean out the ashes with a shovel.  You will quickly find out that you are not going to get anywhere near the firebox because it will be 800 F or more!

They want you to open the firebox door and you will need to leave it open to let the heat out and I call that wasting heat.  You will need to kill the fire to be able to shovel out the ashes and then you have to start a fire again, in the dead of winter.

With our furnaces you do it the easy way.  Even with a fire raging, you can pull out the ash tray, dump the ashes into a fire proof container and slide the tray back in without missing a lick.  Two handles on the ash tray make it easy.  Every ash tray is the same length as the firebox.

9: It is the best boiler because it has one standard pump installed WITH flanges; many others don't give you any pump PLUS we give you an extra set of ports for another pump to heat another building. See next photo. below.

10: They all come pre-wired with a reliable RANCO aquastat as shown.

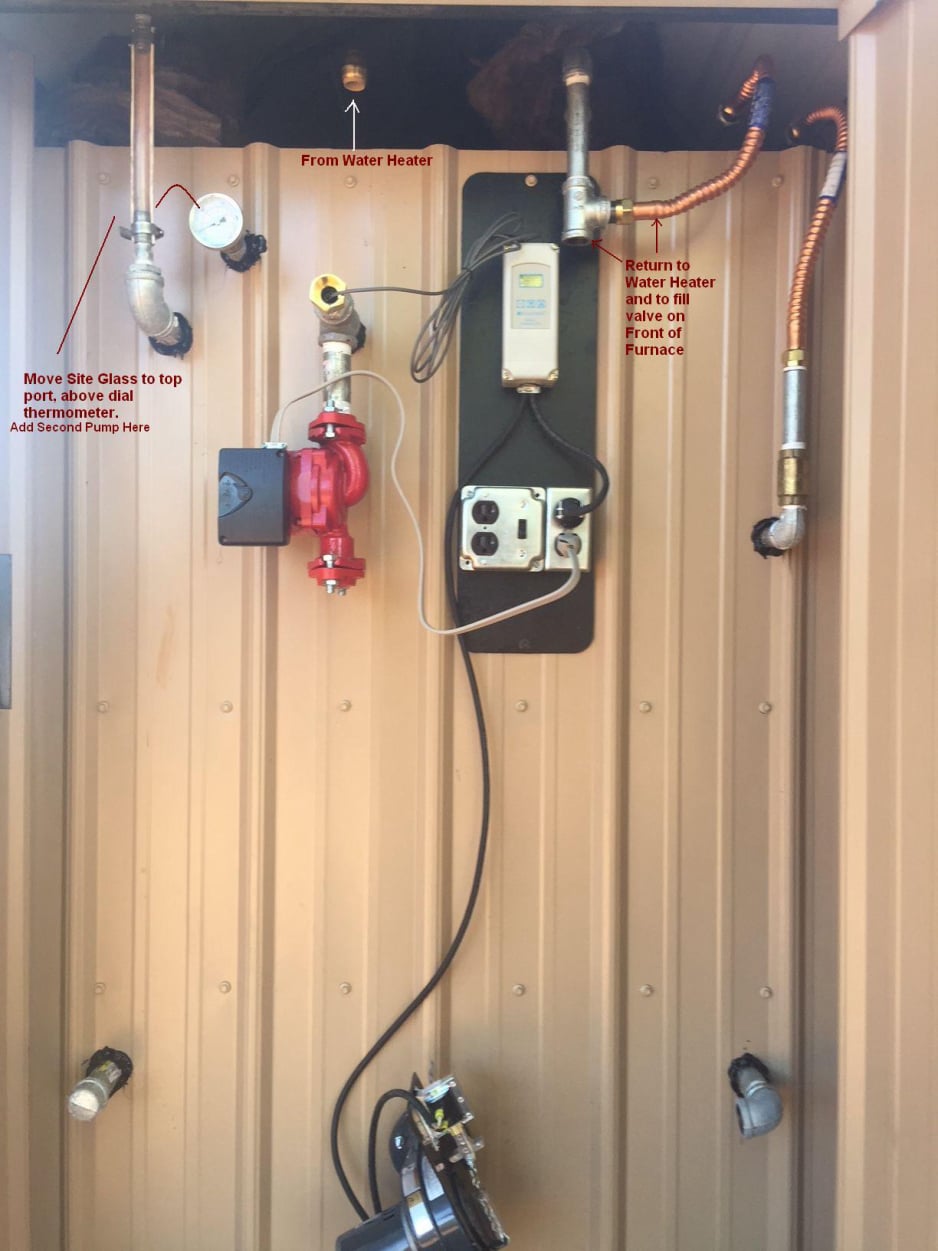

All wired up, protected behind full-sized rear door.


All wired up, protected behind full-sized rear door
Copper Domestic Hot Water Coil

11: A built-in copper hot water coil, that sits in the big tank of water to heat your domestic hot water; saving you $35-$65 a month in energy costs plus $300 in installation costs of parts that are needed with other manufacturers' boilers.

WNC Stoves

Get SALES and SPECIALS!

We do not sell your information!!
PRIVACY POLICY

Hypro Therm Furnace Mfg LLC

With rare exception, in the U.S., our boilers are for Businesses and Hot Water heating only.

SEE THIS PAGE

It is ultimately up to YOU, the consumer to check with YOUR local/state dept. of Environmental Quality to see what regulations apply to you.

Our BOILERS are built to heat businesses,  buildings, garages, kilns, workshops, commercial and other spaces, plus domestic hot water systems, pools and hot tubs.
