ALL furnaces now come with a Motion Detector Light that comes on when you come close to the furnace at night. No switches to mess with! No forgetting to turn it off!


We have a special color combination
to match your home or any surrounding buildings!


We now carry  FIVE  sizes of furnaces:



Shaver Pro Series 140  $4777  134,000 BTU and a 140  gallon water tank.
3
,125  sq ft.* . (For folks south of TN)

Shaver Pro Series 165  $4977  165,000 BTU and a 170 gallon water tank.
4,000 sq ft.*

Shaver Pro Series 250  $5877  240,000 BTU and a 250 gallon water tank.
5,500 sq ft.*

Shaver Pro Series 290  $6227  280,000 BTU and a 290 gallon water tank.
7000  sq ft.*

Shaver Pro Series 340  $6877  326,000 BTU and a 340 gallon water tank.
8,000 sq ft.*


Outside wood boiler furnace

Our outdoor wood burning furnace in White with Ocean Blue

Our outdoor wood burning furnace in Hunter Green



Brick Red Outdoor Wood Furnace

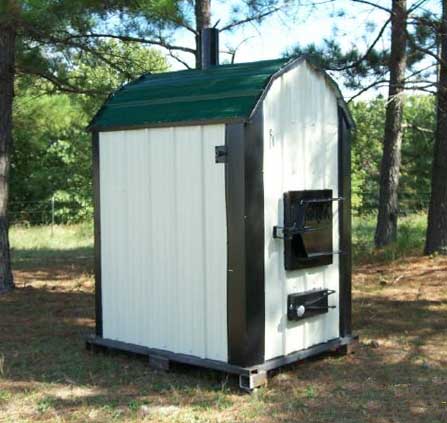

Bright White Outdoor Wood Furnace
with green roof and black corners

Get it any way you want!

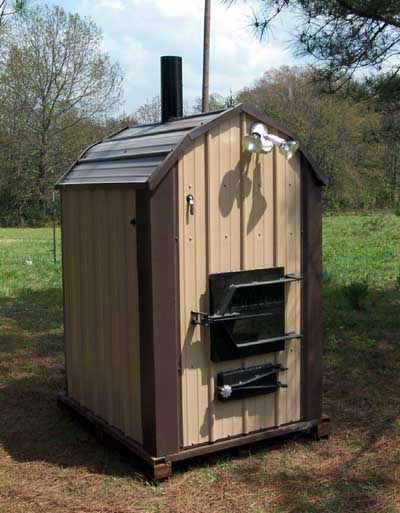

Tan with Brown Trim
The tan looks a little darker than this. See the color chart below.

Ivory is very similar but is almond



Grey with Black Trim

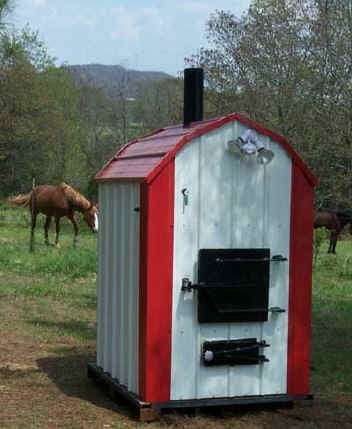

White Furnace with Red Roof and Trim

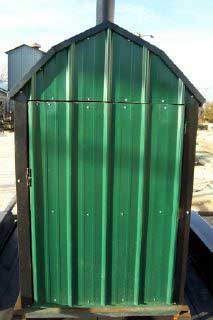

Rear door of Wood Burning Boiler

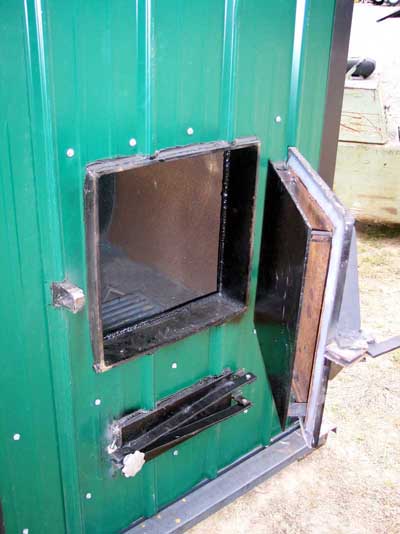

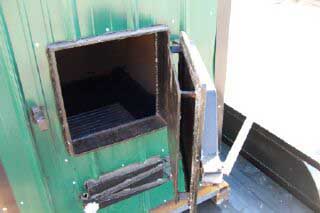

outdoor-wood-burning-furnace-firebox

Optional 1/2" thick firebox! The thickest in the world!

Our standard firebox is 3/8".
3/8" is 50% thicker than most of the competition
and we have NEVER had a firebox failure!

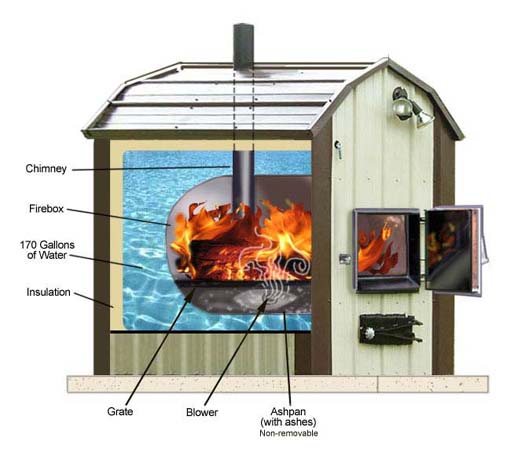

This chimney design is what help us achieve over 75% efficiency,
that qualifies it for the $1500 energy tax rebate.

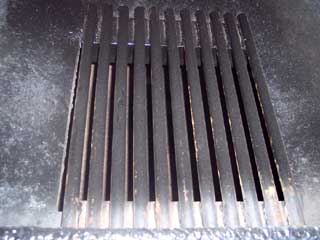

The grate is made out of 3/4 inch bar stock. We have NEVER had one burn through!



The air blows in from the back of the furnace!

There is a blower in back that feeds air into the firebox, below the grate, to feed oxygen
to the fire. Feeding the fire from the bottom (fires burn from the bottom up) is the best way
to get complete combustion from the wood - like a blacksmith's forge!

This is infinitely better than a fan on the front door blowing air into the side of the fire - or
a manual draft. The fan is thermostatically controlled to keep the water at a set
temperature and is adjustable.








This is about a 23 year old furnace. The patch on the roof is from a house fire
11 years ago. The original house, sitting right beside the furnace burned down
but only damaged part of the roof but was still operational. They kept it right
where it was for the next house and it's still being used today!

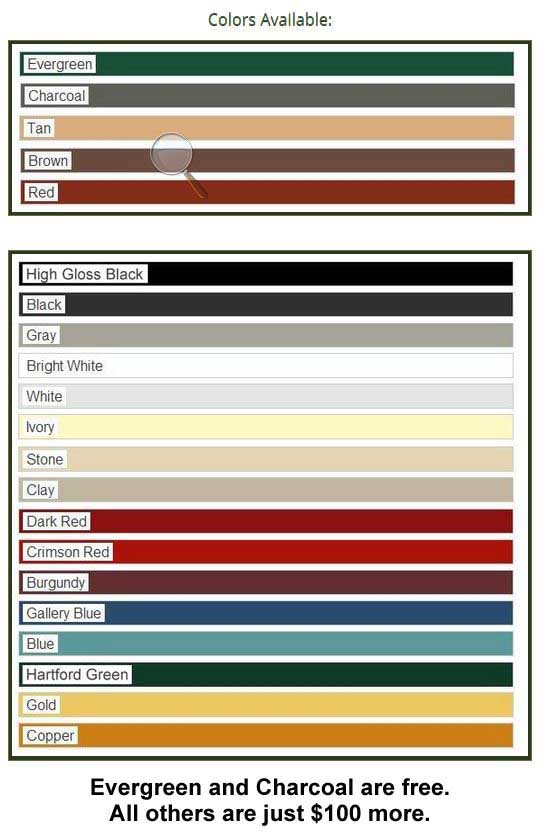

20 colors for your siding!

A total of over 8000 color combinations - sides, corners and roof






Plus Galvalume which lasts 6 times longer than Galvanized metal!



Also introducing Camouflage!
